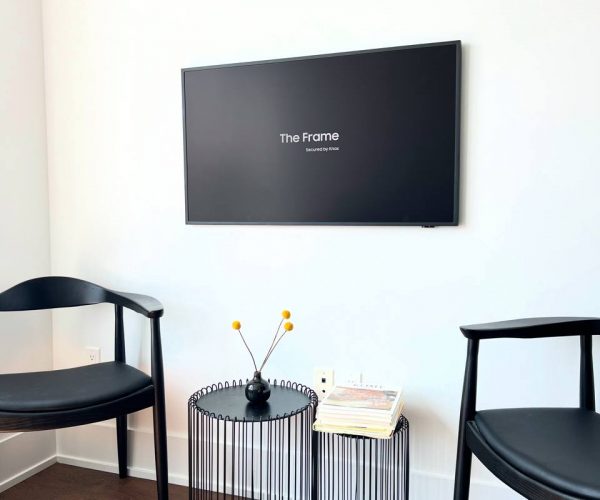

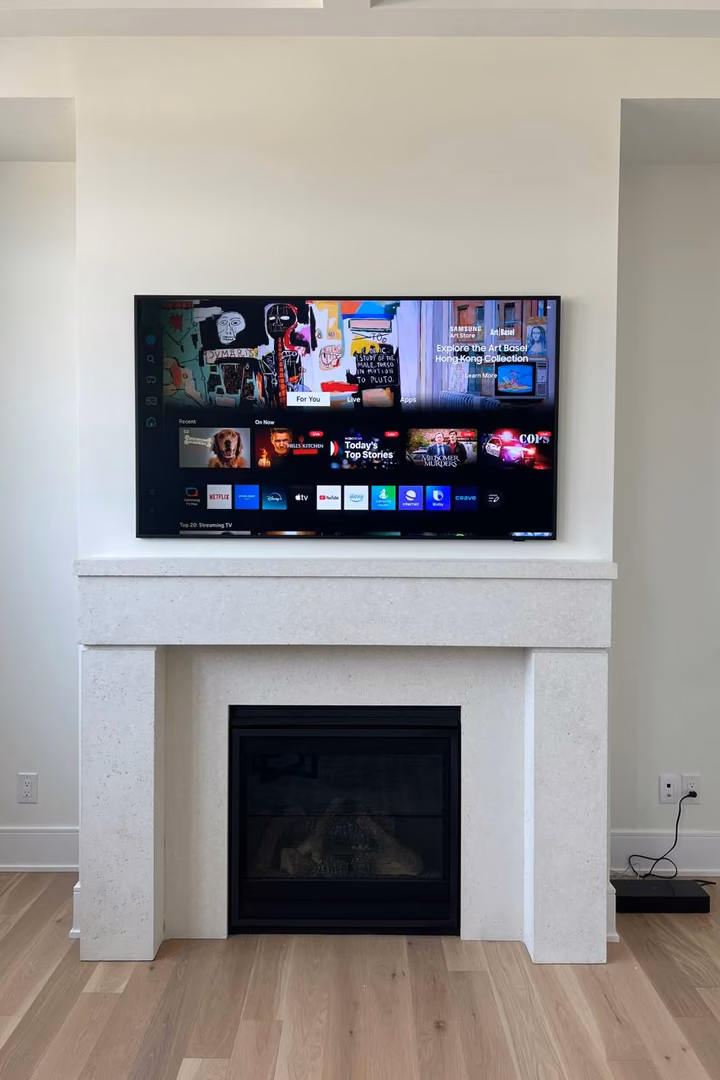

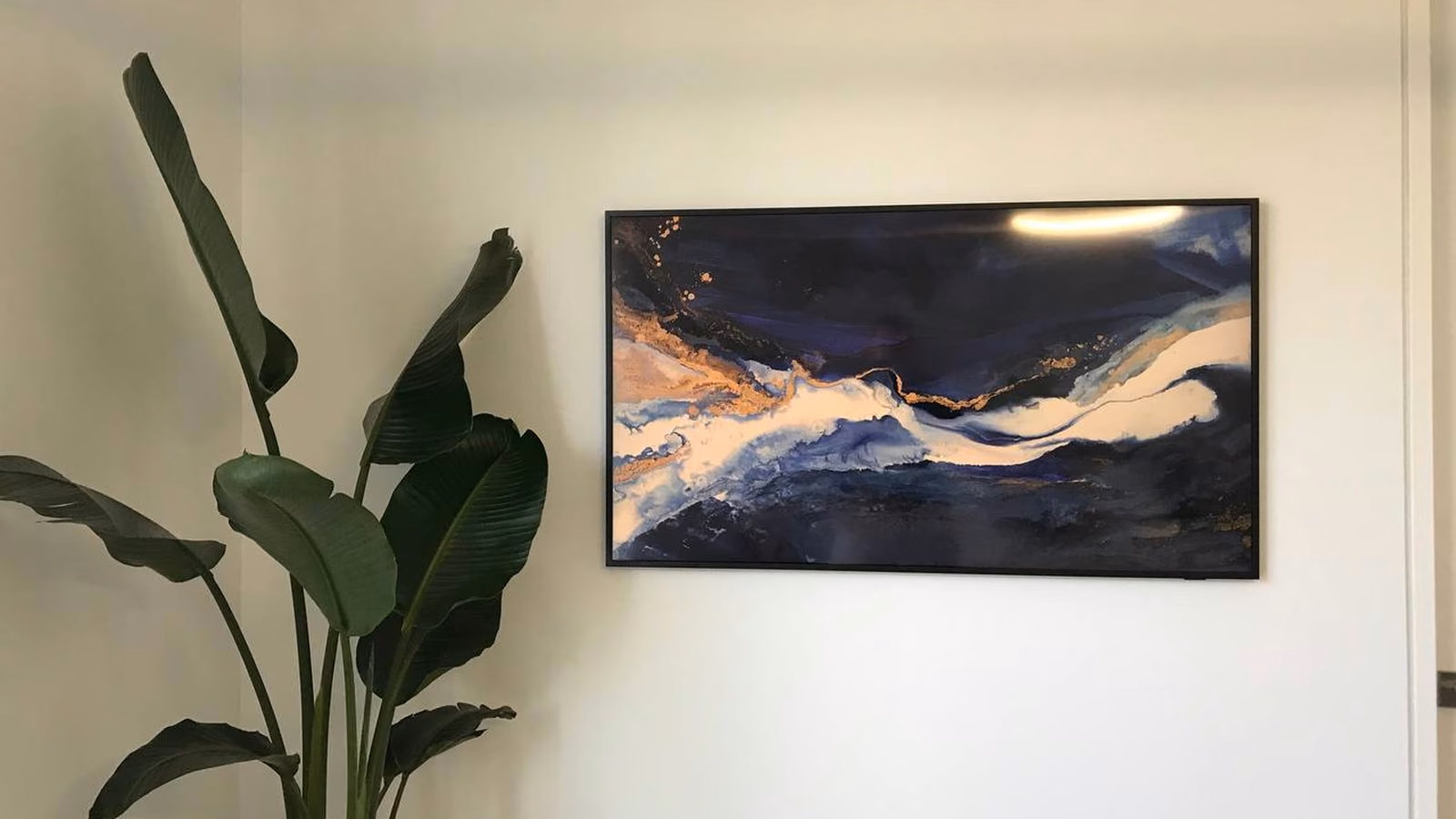

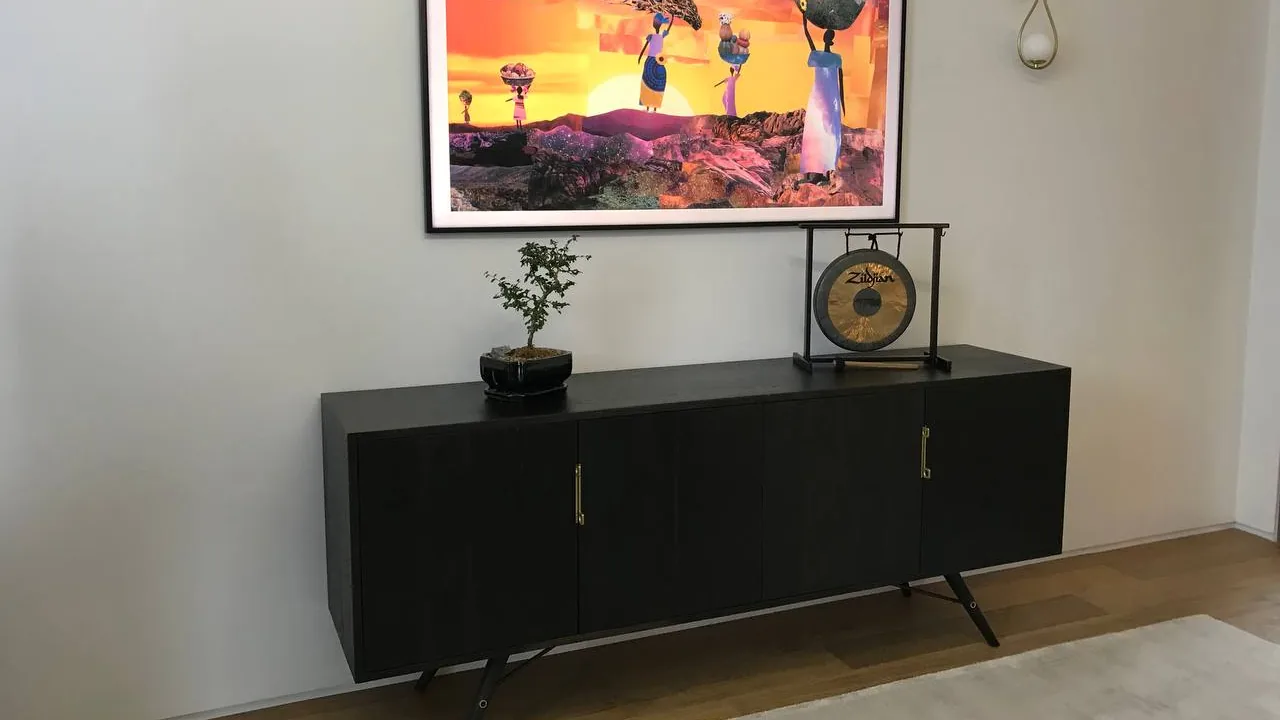

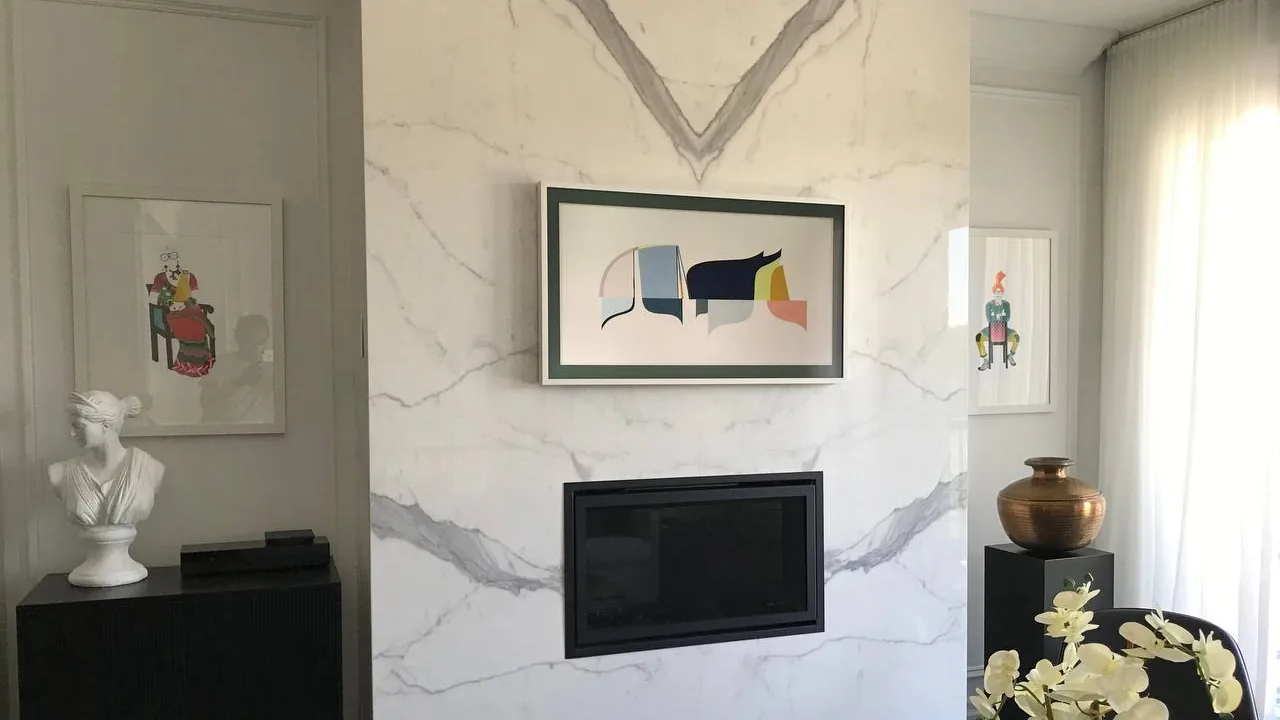

Frame TV Installation

Do you want to mount your One Connect Box on the wall but don’t want it to be visible? This blog post will show you how to conceal your One Connect Box in a wall TV frame. Follow these simple steps, and your One Connect Box will be hidden from view or call our team at GTA Wall Mounting to do it for you!

The Best Way to Hide Your TV Cables and Keep Them Organized

There’s nothing worse than a cluttered, messy living room – especially regarding television and computer cables. They always seem to be in the way and constantly tangling up. But with One Connect Box, you can finally end the cable chaos. One Connect Box is the best way to hide your TV cables and keep them organized. It’s simple to use and easy to install, making your living room look neat. Plus, it comes with a money-back satisfaction guarantee, so you can be sure you’re getting the best possible value for your money.

mounting the bracket
home stars best award 2018
home stars best award 2019
5ef4ddbc15fa2 Hs Boa 2020 Logo Bl Fab14c65da3d2f5ebf6a20fe666ec455
603e8979f2acb Hs Boa 2021 Logo Reversed 1
Hm 2022
Best of houzz 2018
best of houzz 2019
Imagecompositionservlet
Boh21 Service Web 300x300 1

What Benefits of in-Wall Concealment for the One Connect Box?

In-wall concealment for the One Connect box provides many benefits.
  1. It declutters your living space by hiding unsightly cords and wires.
  2. It protects your gear from damage by keeping it out of reach of curious pets and children.
  3. It helps to prolong the life of your equipment by preventing dust and dirt from accumulating on the exposed ports and connections.
  4. It gives your home theatre setup a sleek, professional look that will impress your friends and family.
So if you’re looking for a way to take your home theatre to the next level, in-wall concealment is the way to go.
Work Done
0 K+
Happy Clients
0 K+
Professional Team
0 +
Years Experience
0 +
Happy Couple At Table At Home Sharing A Laptop 2022 03 08 01 04 27 A3k2pyd
5.0

Rating Customer

One Connect Box Dimensions

The new 2022 Slim One Connect Box dimensions are 13 x 11.5 x 1.62 inches or 33.02 x 29.21 x 4.1 centimetres. The box is slimmer, sleeker, and takes up less space than the previous model, making it perfect for those with limited real estate for their home theatre setup. The new design looks great with any TV style and compliments a minimalistic living room aesthetic.

The old model was also pretty big and clunky, so the new dimensions are a welcome change. If you’re looking for a top-of-the-line home theatre experience, you need the new Slim One Connect Box from Samsung. It’s the perfect addition to your already amazing TV.

What Size AV Back Box Do I Need?

An experienced installer knows that choosing the right AV back box is essential for a proper installation. But with so many different sizes and styles on the market, it can be hard to know which one is right for your project. Here are some tips to help you choose the right AV back box for your next installation.

For 32″ frame TVs, we recommend using a 9×14 inch AV back box with the Mini One Connect Box. This small box can be installed horizontally towards the bottom of the TV.

For 50″ and 43″ frame TVs, we recommend using a 9×14 inch AV back box with slight modification. These boxes are smaller and easier to hide behind the TV.

And for 55″ and larger frame TVs, we recommend using a 17×14 inch AV back box. These boxes are easy to install and provide plenty of space for your Slim Fit wall mount.

Why Do You Need In-Wall Concealment for the One Connect Box?

When protecting your investment, there is no such thing as being too careful. The last thing you want is your expensive television to be damaged by a power surge or voltage spike. That’s why using an in-wall concealment system for your One Connect Box is important. Not only will this keep your cable tidy and out of the way, but it will also provide an extra layer of protection against electrical hazards.

In addition, concealing your One Connect Cable will give your home a sleek and polished look, ensuring that your television blends seamlessly into your décor. So if you’re looking for a way to safeguard your investment and give your home a stylish upgrade, an in-wall concealment system is the way to go.

How Do We Do It

AV Back Box Installation

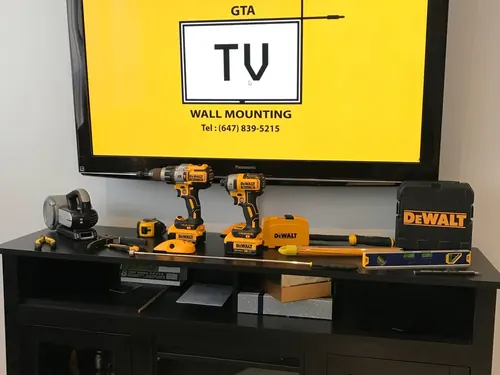

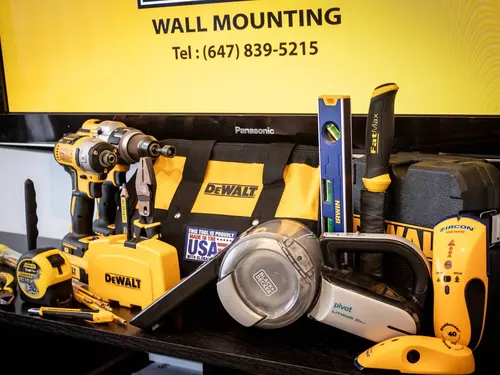

  1. First, we need to find the studs in your wall where you want to mount your Frame TV. We can do this by using a stud finder.
  2. We will find the studs in the wall and then use a width x height outline to mark where the AV Back Box should go. TheBack Box should be between 2 studs and completely hidden from view by the TV once it is mounted on the wall.
  3. We will cut and remove the drywall along the lines we’ve drawn. It should be exactly (w x h) the dimension of the AV Back Box.

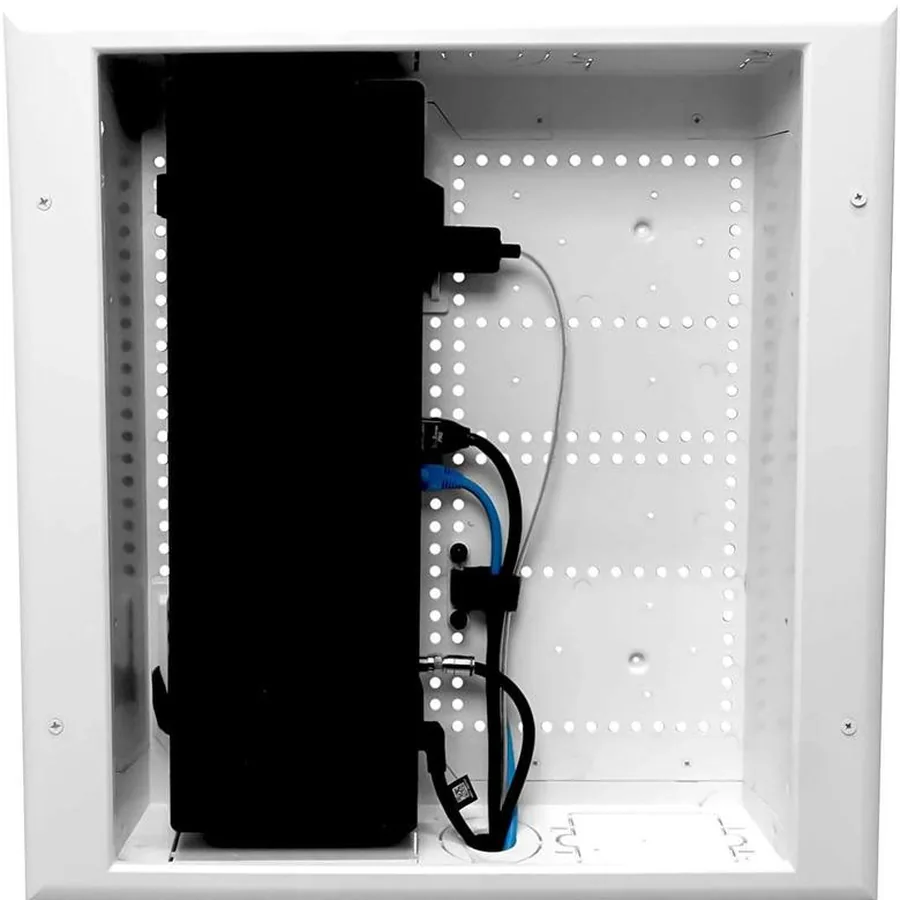

  4. After we recessed the AV Back Box into the wall, we will cut it open and install a Power Outlet inside.

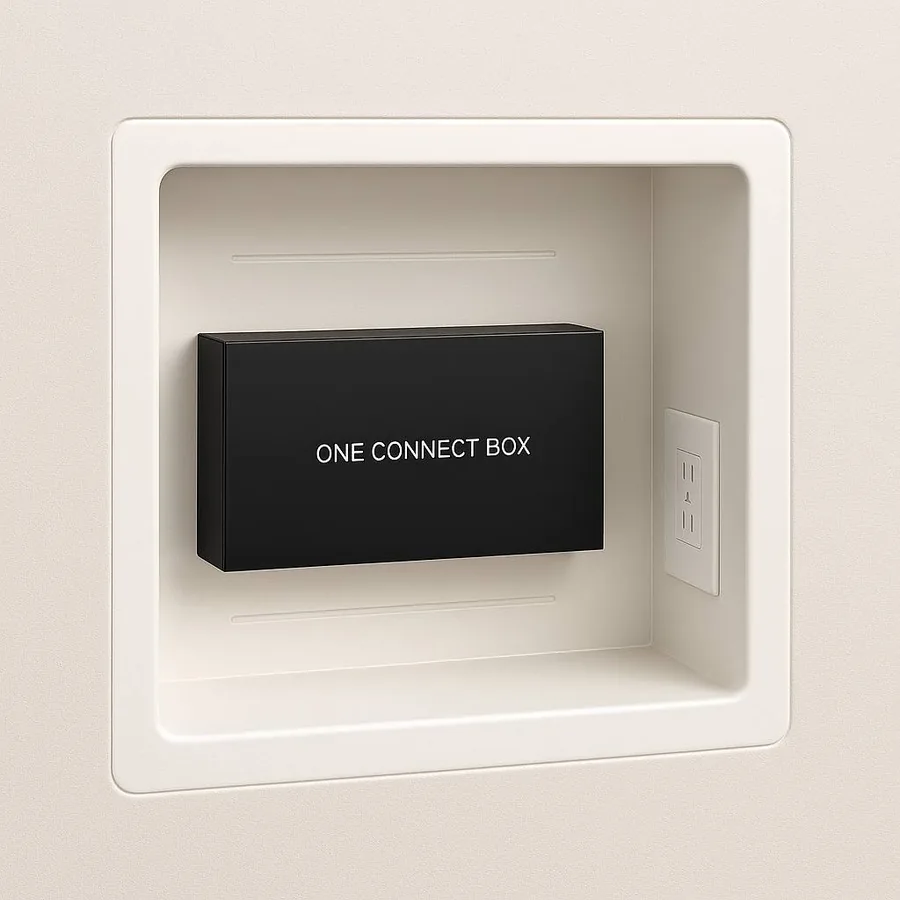

Power Outlet Inside AV Back Box

5. The One Connect Box needs to be plugged into an outlet inside the AV Back Box.

Frame TV Installation

6. Install the wall bracket for your Frame TV so that it is partially overlapping / covering the AV Back Box if necessary. We place the One Connect Box into the AV Back Box and plug in the One Connect Cable and power cord to their corresponding source.

SUM

7. The final step is to take the One Connect Cable and plug it into your Frame TV. Next, secure your TV to the wall bracket.
