What’s Actually Behind Your Wall? A Toronto TV Installer’s Guide to Drywall, Steel Studs, Concrete, Plaster & Tile

Home / Blog / Wall types

You’ve picked the TV. You know where the couch goes. Then someone asks what your wall is made of, and “the white kind” suddenly doesn’t feel specific enough.

That’s a fair question in Toronto. A condo partition, an older semi and a renovated basement can have almost identical painted walls with very different construction behind them. Even two walls in the same room can call for different mounting methods.

Here’s how to think about TV mounting on drywall, steel studs, concrete, plaster and tile before you buy a bracket or start making holes.

What your wall finish can—and can’t—tell you

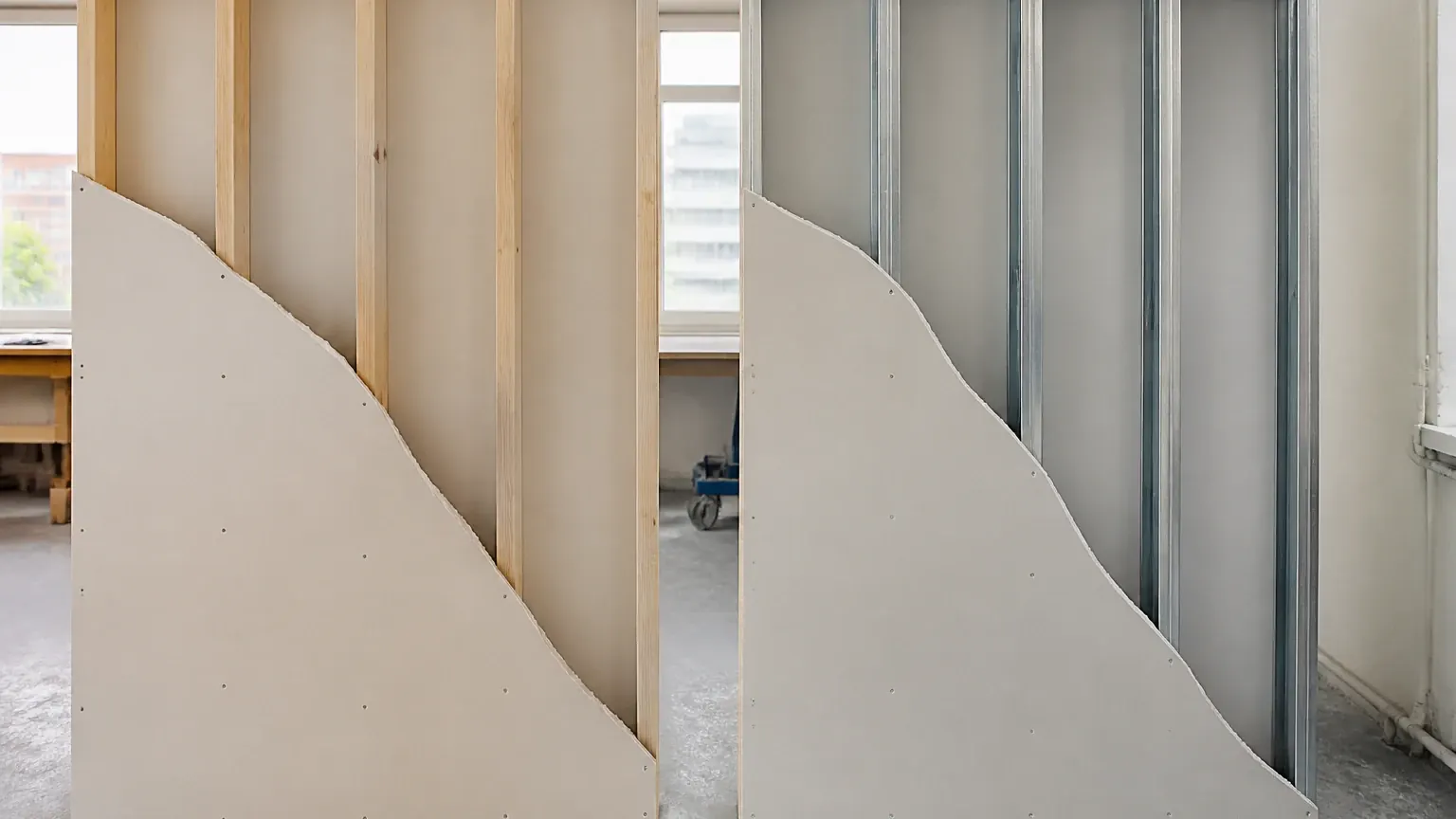

Think of a wall in layers: the visible finish, any board or backing behind it, then the framing or masonry that can support the installation. A secure mounting plan accounts for all three. A wall that sounds solid when you knock on it hasn’t passed an engineering test.

What we commonly encounter around the GTA

Wall construction is one of the first things we assess when planning a professional TV wall mounting installation. Here are a few patterns we commonly find:

• Toronto condos: steel-stud partitions and structural concrete walls can coexist in the same unit. The mounting plan can change from one wall to the next.
• Older Toronto houses: partial renovations often leave original plaster and lath beside newer drywall. That’s one reason we don’t rely solely on the apparent age of your property.
• Newer detached homes: drywall over wood framing is common, but fireplace surrounds and feature walls can differ from the rest of the room.
• Renovated basements: furring strips or shallow framing over masonry can make a wall look like conventional drywall while leaving very little space behind it.
• Decorative walls: slat panels, stone, porcelain and cabinetry add a finish layer without necessarily changing where the structural fastening needs to occur.

Drywall: the surface isn’t the whole wall

Drywall is usually a gypsum core faced with paper. It gives you a smooth painted surface, but that surface alone doesn’t identify a suitable place for a conventional TV bracket. The usual wood-framed installation transfers the load through the drywall into verified studs or suitable structural backing.

The installer needs to establish where the studs actually are, whether they’re sound, and whether the bracket’s hole pattern reaches the required fastening points. Existing holes aren’t proof that the previous installation was right. Neither is a packet of leftover wall plugs.

Mount instructions matter here. For example, the SANUS VLT6 manual covers specified wall types and explicitly rules out installing that model into drywall alone. Other products can have different requirements, so there isn’t one universal “drywall TV mounting” recipe.

Can a TV ever go up without studs?

Some purpose-designed mounting systems allow installation on specified hollow-wall assemblies within strict limits. That doesn’t make ordinary drywall anchors a substitute for stud mounting on a bracket that requires it. Check the complete system’s instructions, including wall condition, board thickness, TV weight and permitted movement. If your setup doesn’t match, choose another location or arrange suitable reinforcement.

Steel studs: common condo questions, different hardware

A Toronto condo may have steel-framed interior partitions alongside concrete structural walls. Don’t assume the wall behind the TV matches the wall beside the window. Renovations can add another layer of uncertainty.

Steel studs are typically hollow sections, so you can’t treat them like solid lumber and expect a wood lag screw to behave the same way. We install full-motion TV mounts on steel studs by drilling through the stud’s front flange and using properly selected SNAPTOGGLE anchors. The channel bears behind the metal flange, engaging the stud rather than relying on drywall alone.

Steel framing itself doesn’t rule out a full-motion installation. We match the bracket and fastening system to the TV and wall assembly. For an 85-inch TV, though, we recommend a fixed or tilt mount instead of full motion because of the leverage created when a large screen extends away from the wall.

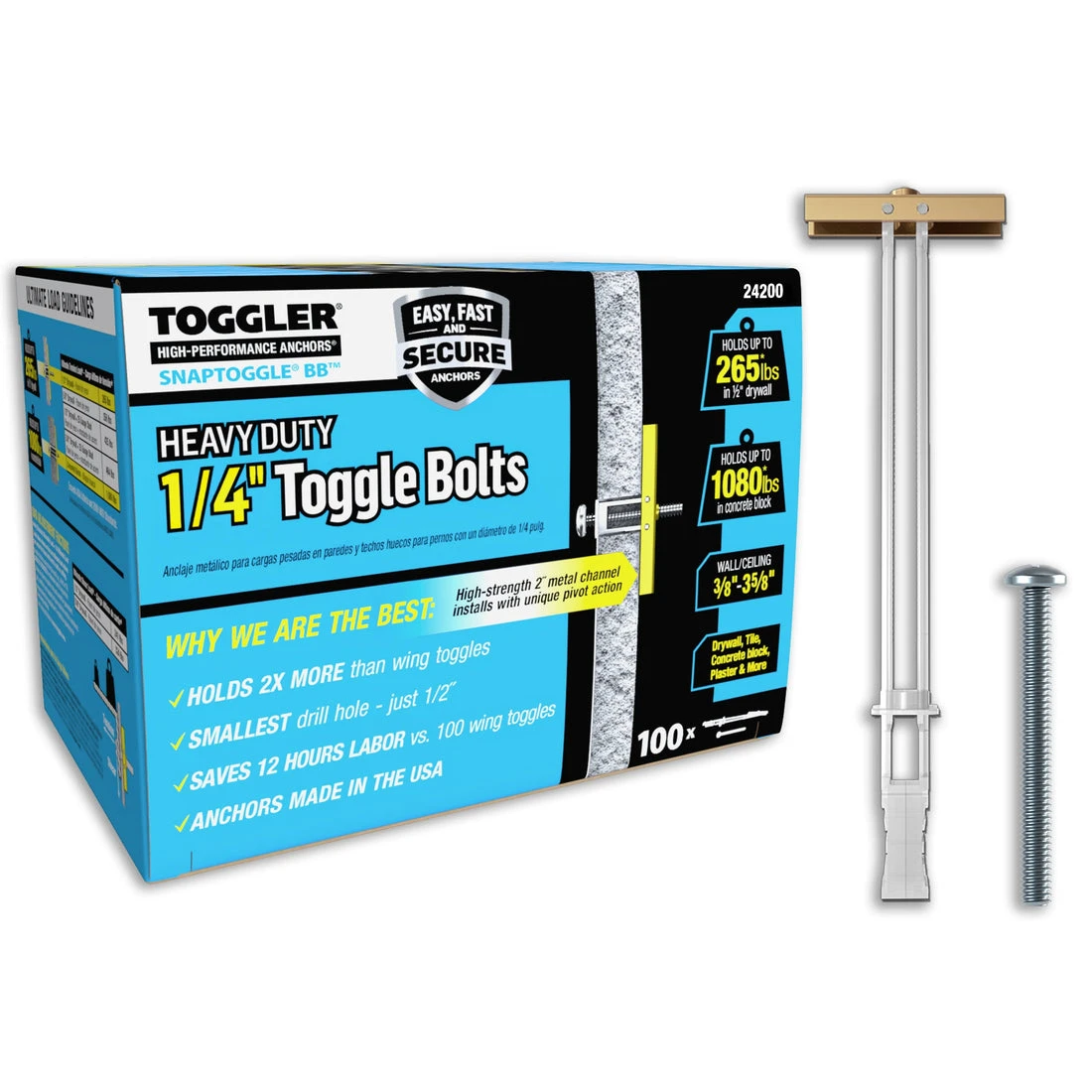

SNAPTOGGLE anchors: why we drill through the metal stud

When we use SNAPTOGGLE anchors for a suitable metal-stud TV installation, we locate the stud and drill through the drywall and the stud’s front flange—the flat metal face behind the board. The toggle channel opens inside the hollow stud and seats against the back of that flange. That engages the stud instead of leaving the anchor supported by drywall between studs.

The machine bolt passes through the TV wall plate and threads into the metal channel. The plastic straps position the channel; they aren’t what the bolt threads into. Pulling the channel into place, sliding the collar flush and snapping off the excess straps leaves the anchor ready for the bracket. See TOGGLER’s installation sequence.

“Aluminum studs” or steel studs?

If you call your framing “aluminum studs,” we’ll verify the actual material first. Common light-gauge drywall framing is galvanized steel; ClarkDietrich’s framing guide describes this construction. Silver-coloured metal alone doesn’t establish that it’s aluminum.

For actual hollow aluminum framing, a through-flange toggle arrangement may be an option only after the anchor and framing suitability are confirmed for that assembly. The steel-stud test values below aren’t an aluminum-stud rating. Alloy, thickness, profile and the framing connections matter. We don’t relabel steel test data to fill that gap.

Are SNAPTOGGLE anchors rated for about 400 lb?

That figure has a basis, but it needs its test conditions. TOGGLER lists these ultimate tensile pull-out loads for the BB ¼″-20 model:

Source: TOGGLER technical bulletin, page 3. Its stud-test footnote reports failure of the drywall portion. The BB uses a ½″ installation hole, needs 1⅞″ clearance behind the wall and accommodates a ⅜″–3⅝″ grip thickness. Other sizes differ.

Ultimate strength isn’t the allowable weight of your TV. TOGGLER’s load-rating FAQ recommends one-quarter of ultimate load as a working-load guide, subject to the actual installation. For 425 lb, that arithmetic is 106.25 lb—not a guaranteed TV capacity. Pull-out and downward shear are different loads, and an extended TV bracket creates leverage. You can’t simply multiply a test figure by four anchors and call the result a mount rating.

Where else do snap toggles make sense?

TOGGLER lists drywall, tile over drywall, plasterboard and concrete block among SNAPTOGGLE’s compatible surfaces. For a TV, the entire wall-and-bracket arrangement still needs to be suitable:

• Drywall between studs: a possible hollow-wall application when the mount permits it and the board meets the requirements. It doesn’t engage a metal stud or inherit the through-stud test result.
• Plaster or tile over a hollow wall: consider the complete thickness, cavity clearance and condition. Brittle or loose finishes need assessment; tile over solid masonry is a different assembly.
• Hollow concrete block: the channel needs an accessible void and sound material to bear against. A filled cell or solid section doesn’t provide that space.
• Solid poured concrete or solid brick: use an appropriate masonry anchoring system. A conventional blind hole leaves nowhere for the toggle channel to open.
• Wood studs: the usual TV installation uses the bracket’s specified wood fasteners into verified timber. There’s normally no reason to replace that detail with a large toggle hole.

The useful distinction is where the channel bears: behind drywall, behind a metal-stud flange or inside a suitable hollow block. The anchor may look the same from the room, but the support behind it changes.

Why a full-motion mount changes the conversation

When a TV extends away from the wall, its weight acts farther from the attachment points and creates a greater turning force. The screen hasn’t gained weight; the leverage has changed. That’s why TV weight alone—or the biggest number printed on an anchor box—doesn’t settle whether an installation is suitable.

If you only need a small viewing-angle adjustment, compare the options in our fixed, tilt and full-motion bracket guide before buying. Pick the movement you’ll use, then verify the wall can support that setup.

Concrete: strong material, specific checks

Sound concrete can be a suitable mounting base with the right approved anchors and installation method. But “concrete wall” is sometimes shorthand for a hard surface that’s actually hollow block, brick or drywall installed over a small cavity. Those differences affect the hardware and how it carries the load.

The anchor specification controls details such as hole diameter, embedment into the base material, spacing, edge distance and hole preparation. Decorative layers and gaps don’t count as solid concrete embedment. If the bracket is separated from the structural wall, that offset needs an appropriate detail; simply buying longer screws doesn’t resolve it.

Before drilling structural concrete, establish what may be embedded and what the building permits. Concrete scanning equipment can locate objects such as reinforcement and tendons, as described in Hilti’s concrete detection guide. The right assessment depends on the structure and the proposed drilling locations.

If you hit unexpected metal or the wall differs from what you planned for, stop and reassess. “Use a bigger drill” is not the next diagnostic step.

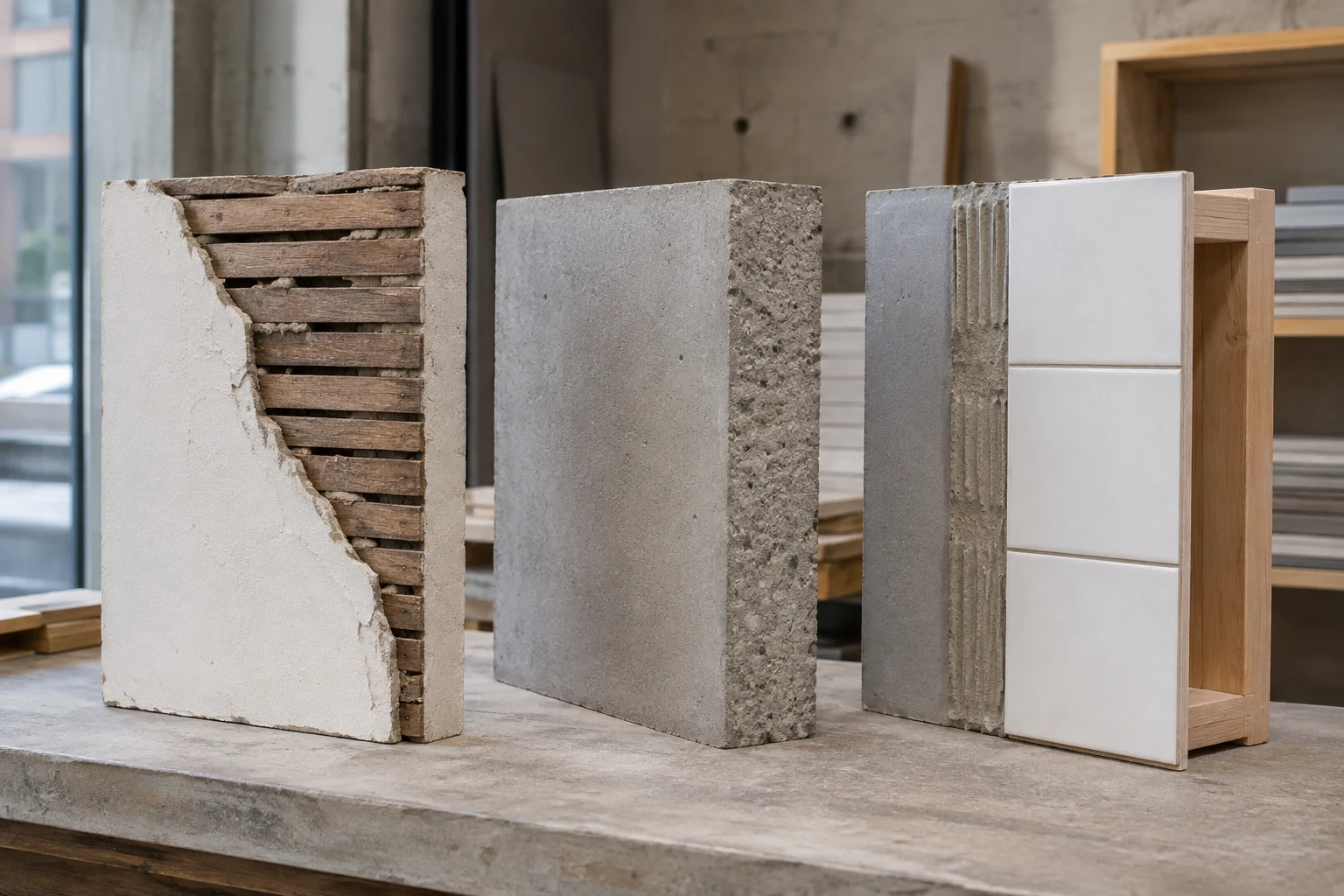

Plaster: respect the finish and find the support

In an older Toronto house, plaster may sit over narrow wood lath strips, metal lath or another backing. We check the construction at the planned mounting position, including any transitions between original finishes and later repairs.

Plaster can crack or break away locally, and wood lath isn’t the same thing as a framing stud. The mounting plan needs verified support behind the finish and enough care to avoid damaging the surrounding surface. Metal lath and irregular layers can also make scanner readings harder to interpret.

There’s one check to make before disturbing suspect older materials: asbestos. Health Canada identifies plaster among older building materials that may contain it. You can’t establish asbestos content by looking at a wall; arrange professional assessment where needed before drilling or opening it. See Health Canada’s asbestos guidance.

Tile: a hard finish isn’t a mounting base

A porcelain feature wall can look reassuringly solid. Behind it, you might find adhesive and backer board over framing, or tile bonded over masonry. The tile itself doesn’t tell you which fastening method is suitable.

For TV mounting through tile, plan the attachment into the verified support behind the finish. Account for the complete thickness and the way the wall plate bears on the surface. Uneven stone, unsupported areas or excessive tightening can leave you with a cracked finish even when the fastener reaches something solid.

Drilling also needs a bit and technique suited to the actual tile. Bosch’s tile-drilling guidance distinguishes drilling through the tile from drilling the material behind it. Hammer action through a brittle tile face is a poor shortcut. Speed and cooling requirements depend on the selected bit, so follow its instructions.

And if that tiled wall surrounds a fireplace, confirm the fireplace manufacturer’s clearances and the TV’s operating limits before deciding on a screen position. An attractive mounting surface doesn’t answer the heat question.

What to check before your TV installation

You don’t need to open the wall before contacting us. A few useful details help establish the scope without turning your living room into an exploratory renovation.

1. Identify the TV and bracket. Send model numbers, the TV’s weight without its stand, and whether you want fixed, tilt or full motion.
2. Show the whole wall. Include nearby outlets, the fireplace if there is one, and the proposed screen position. A close-up of white paint has limited storytelling ability.
3. Share what you know about construction. Renovation photos or building drawings can help. Mention repairs, unusual finishes and any backing installed for a TV.
4. Check building requirements. For a condo or rental, confirm applicable permissions, working hours and any restrictions on structural walls with the appropriate owner or property manager.
5. Decide where devices and cables will go. A secure bracket and a workable cable route are separate parts of the job.

On site, the wall still needs verification. Knocking, a magnet and a stud finder can provide clues; none independently proves the full wall assembly or guarantees a drilling location is clear of wiring and plumbing. Conflicting readings call for more investigation.

What about hiding the wires?

A framed cavity may offer a cable route, but blocking, insulation and other services can interrupt it. Solid concrete doesn’t provide that same cavity. A surface raceway or a planned service space may be the practical option.

Plan power separately from signal cables. Use a suitable permanent power arrangement instead of treating an extension cord as permanent wiring; Ontario’s Electrical Safety Authority advises using extension cords only temporarily. If an outlet needs to move, arrange appropriate electrical work. Our wire concealment guide explains the layout options.
