Key takeaways
- You need two sight lines, not one. Standing at a machine and lying on a mat are very different angles — a full-motion mount is what reconciles them.
- Mount higher than you would in a living room. Gym viewing is mostly done standing or upright, so living-room eye-level guidance doesn’t apply here.
- Keep the screen out of the impact zone. Dropped weights, resistance bands and swinging equipment all reach further than people expect.
- Garages and basements get damp and cold. Check your TV’s rated operating temperature and humidity before mounting it somewhere unheated.
- Fix into structure and over-specify. Gym floors take impact, and vibration works fasteners loose faster than a living room ever will.
A gym TV is a harder mounting job than a living room TV, and almost nobody says so up front. You watch it standing on a treadmill, sitting on a bench, and flat on your back on a mat. Weights get dropped near it. The room is often a basement or a garage, which means concrete, damp, and cold. Living-room mounting advice gets all of that wrong.
Here's what actually matters, in the order it matters.
- Height
- Higher than a living room. Screen centre at roughly standing eye level, then tilt down.
- Mount type
- Full motion. It's the only one that serves the machine, the bench and the floor.
- Safe distance
- Keep the screen outside the platform, the rack and the band's full stretch.
- Basement wall
- Concrete holds beautifully. Cable concealment is the hard part, not the fixing.
- Garage
- Check the TV's minimum operating temperature before anything else.
- Sound
- A soundbar over HDMI-ARC. Gym rooms echo and TV speakers lose to a treadmill.
How High Should a TV Be in a Home Gym?
Higher than you think, and higher than any living-room guide will tell you. The usual advice puts screen centre at seated eye level, around 42 inches, because it assumes you're on a sofa. In a gym you're upright almost the whole time.
Do this instead of guessing. Stand on the treadmill deck, or on the bike, or wherever you spend the most minutes. Look straight ahead and have someone mark the wall at your eye level. That mark is roughly where the centre of the screen wants to sit. On a treadmill it usually lands somewhere around 55 to 65 inches off the floor, because the deck already lifts you four to eight inches before you start.
Then tilt the screen down slightly, 10 to 15 degrees. That squares the panel to your face, keeps your neck neutral through a long session, and kills the ceiling-light reflection that otherwise sits right in the middle of the picture.
The mistake we get called out to fix
Somebody mounts at living-room height so the room still works for movie nights, then discovers they're looking down at the screen on the bike and up at it from the mat. Neither position is comfortable and the mount can't correct for it. Pick the position you'll use most, mount for that, and let an articulated arm handle the rest.

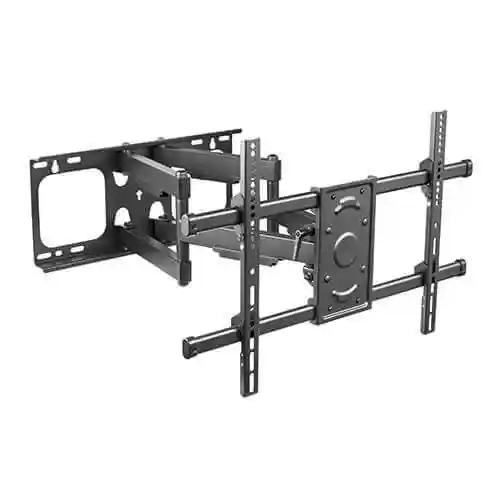

Why a Full-Motion Mount Is Worth It Here
We usually talk people out of full-motion mounts. In a living room you sit in the same spot every night, the arm never moves, and you've paid for travel you don't use.
A gym is the exception, and it's the clearest one we see. One screen has to serve a treadmill against one wall, a bench in the middle of the room, and a mat on the floor. Those are three different angles, and no fixed or tilting mount reconciles them. An arm does, in about two seconds, with one hand.
Two things to get right when you buy one. Check the weight rating against your actual TV rather than the screen size, because an arm at full extension multiplies the load on the fixings far beyond what the same TV does sitting flat. And on anything 65 inches or larger, get a double-arm bracket. Single-arm mounts at that size develop a visible droop over a year or two.
Where there's genuinely no good wall, and in a garage that's common, a ceiling mount does the same job from above and keeps the screen out of the way entirely. We cover the wider trade-offs in our guide to fixed, tilting and full-motion brackets.
Keeping the Screen Out of Harm's Way
A dropped 45-pound plate doesn't have to hit the TV to end it. The floor takes the impact, the impact travels through the joists, and the screen on that wall gets the shock. Rubber flooring helps and is worth putting down anyway. Distance helps more.
Map the danger zone before you pick the wall, and be honest about how far things travel:
- The platform or rack. Anything that gets dropped, plus a generous margin around it.
- Resistance bands. A band that lets go crosses a room fast. This one surprises people.
- Barbell ends. Racking a bar takes more lateral room than the bar is long.
- Skipping and swinging. Ropes and kettlebells need clear space overhead and to the sides.
The wall that survives all four is usually the one behind the cardio equipment, not the one behind the weights. If the room only has one usable wall, mount high and use the arm to bring the screen down when you're actually watching it.
Basement Gyms: Concrete, Damp and Cable Runs
Most GTA home gyms end up in the basement, so this is the common case rather than the edge case.
The good news is the fixing. Poured concrete or block gives you a stronger anchor than any stud wall, provided you use a hammer drill, the right masonry bit and sleeve anchors rated for the load. Done properly, that mount is going nowhere.
The cable is the harder half. A poured wall has no cavity, so the in-wall cable run people expect from a living room install simply isn't available. Your options are a surface raceway painted to match, or a furred-out stud wall in front of the concrete if the basement is being finished anyway. Anyone who promises you an invisible in-wall run on a poured foundation is going to surprise you on the day.
Damp is the other basement factor. Check that the room stays within the TV's rated humidity range, and if you already run a dehumidifier down there for the equipment, you're most of the way sorted.
Garage Gyms and Ontario Winters
This is where we most often tell people to stop. Look up your TV's minimum operating temperature before you buy a mount. Most panels specify something around 5°C at the low end, and an unheated Ontario garage sits well under that for months.
Cold alone is survivable. The real damage is condensation: a freezing panel warming up fast when you open the door on a mild day, with moisture forming on the electronics inside. That kills TVs quietly and it isn't a warranty claim.
If the garage is insulated and heated, you're fine, treat it like any other room. If it isn't, either heat it, or use a screen rated for the temperature range, or put the TV somewhere else and run audio out to the garage instead.
Sound That Beats a Treadmill
Gyms are hard-surfaced boxes. Concrete, rubber, mirrors and steel all reflect sound, and a TV's downward-firing speakers were already the weakest part of the set. Add a treadmill motor or a fan and you'll lose the instructor's voice completely.
A soundbar fixes it for less money than most people expect, and connected over HDMI-ARC it's one extra cable and one remote. Mount it directly under the screen so the sound arrives from the same place as the picture. If you want the reasoning and the mounting options, we've written it up in soundbar mounting options.
What We'd Do in Your Space
Every gym install we do starts the same way: someone stands where they actually train, and we mark the wall from there. It takes two minutes and it's the step that decides whether you enjoy the screen or squint at it.
From there it's the parts you'd rather not do on a Saturday. Anchoring properly into concrete or into studs that can take a moving arm. Getting the cable off the wall and into a raceway that disappears once it's painted. Hanging the soundbar level under the screen and getting ARC talking to the TV so one remote runs everything.
We've been mounting screens across Toronto and the surrounding GTA service areas for years, we carry $2,000,000 commercial liability insurance, and every job comes with a one year material and workmanship warranty. On price we're up to 50% less than comparable big-box store installation services, and unlike them we'll tell you on the phone if your garage is too cold for the TV you've already bought.
Send us a photo of the room and roughly where the equipment sits, and we'll come back with a straight price and where we'd put the screen.
Frequently Asked Questions
How high should a TV be mounted in a home gym?
Higher than in a living room, because you're usually standing or seated upright on equipment rather than reclining on a sofa. Stand where you'll actually train and set the screen so you're looking slightly up or straight ahead, then use a tilting or full-motion mount to cover the floor-based work.
What kind of mount works best in a gym?
Full motion. It's the only type that lets one screen serve a treadmill, a bench and a mat on the floor without compromising all three. Ceiling mounts are the alternative where there's no suitable wall.
Can I put a TV in a garage gym?
Check the temperature and humidity ratings first. Many televisions specify a minimum operating temperature well above freezing, and an unheated garage in an Ontario winter will go below it. Condensation as a cold room warms up is the other risk.
Can a TV be mounted on a concrete basement wall?
Yes, and concrete gives you an extremely strong fixing. It needs a hammer drill, the correct masonry bit and sleeve anchors rated for the load.
Cable concealment is the harder part down there — a poured wall has no cavity, so plan on a paintable surface raceway.
How do I protect the screen from dropped weights?
Distance is the main defence — keep the screen well outside the platform or rack area. Mounting higher helps, and a ceiling mount or a corner position keeps it clear of the working area entirely.
Will gym vibration loosen the mount?
It can, particularly with dropped weights or a treadmill on the same floor structure. Fix into studs or masonry, use locking washers, and check the fixings once or twice a year.
Do I need special audio for a gym?
A soundbar helps a lot, because gyms are hard-surfaced and echoey and a TV's own speakers struggle against equipment noise. Connect it over HDMI-ARC so it's a single extra cable.
