Key takeaways
- Check the VESA pattern first. It's the spacing in millimetres between the four threaded holes on the back of the TV — common sizes are 200×200, 400×400 and 600×400. Mount and screen must match.
- Match the weight rating to the actual set, not the screen size. Panel weights vary widely between models of the same diagonal. The figure is in the manual and on the box.
- Fixed for eye level, tilt for high, full motion for off-angle seating. That single rule covers most rooms.
- The wall decides the hardware. Wood studs take lag bolts; concrete and brick need sleeve or wedge anchors and a hammer drill; steel studs and plaster need their own approach.

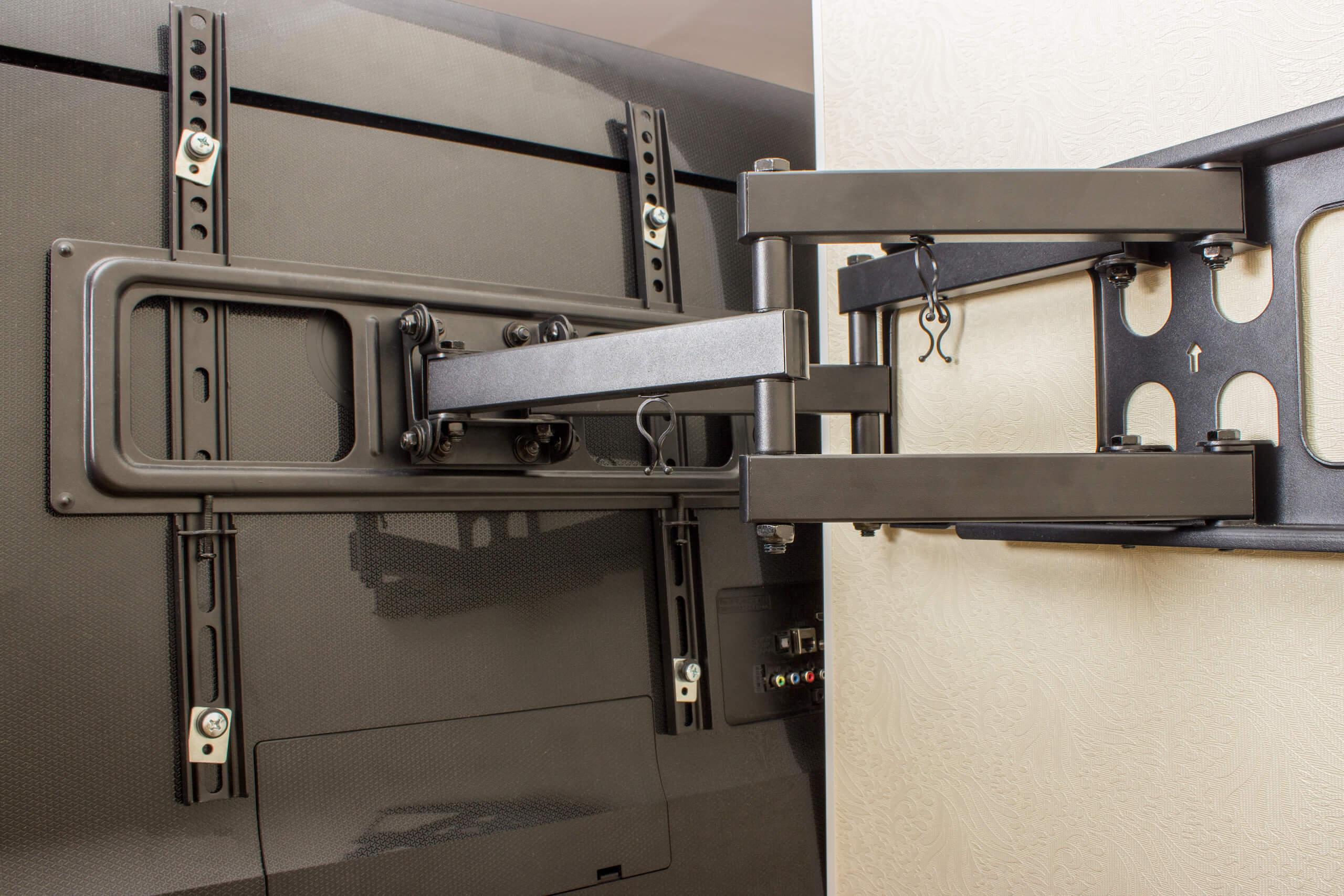

- Full motion needs more of everything. More clearance behind the screen, heavier fixings, and cable with enough slack to travel with the arm.
Are you overwhelmed with the vast selection of TV wall mounts available on the market? You’re not alone! Many people are unsure of which mount is best for their particular space and TV size. If you’re looking for a TV mount that offers the perfect blend of convenience, aesthetics, and functionality, read on to learn how to choose the right one for your needs.
Understanding Different Types of TV Mounts
There are a variety of TV mounts available on the market, and each has its own advantages and disadvantages. To choose the right mount for your space, it is important to understand the different types of mounts and how they work.
The most common type of TV mount is the wall mount. These mounts attach to the wall using screws or nails and can hold most TVs up to 32 inches wide. Wall mounts can be difficult to install if your walls are not level, and they may not be suitable for spaces with a lot of obstructions or sharp edges.
Another type of TV mount is the stand mount. Stand mounts attach to the wall using either screws or bolts and can hold TVs up to 50 pounds. Stand mounts are more versatile than wall mounts, as they can be used in spaces with uneven walls or where there are obstructions near the floor. However, stand mounts are less stable than wall mounts and may not be suitable for TVs that weigh more than 50 pounds.
If you want to use your TV in a different location every day, a portable mount is a good option. Portable mounts attach to the back of your TV using either magnets or straps and can be moved from room to room. Portable mounts are less stable than wall or stand mounts, and they may not be suitable for TVs that weigh more than 25 pounds.
To choose the right TV mount for your space, it is important to measure your space and evaluate the strength, weight, viewing angle, and installation options of each type of mount.
Measuring Your Space for the Right TV Mount
To choose the right TV mount for your space, you will need to understand different types of mounts and measure your space.
There are three common types of mounts: clamps, brackets, and hooks. Clamps attach directly to the wall or structure. Brackets bolt to the base of a television and often have swivel mounting capabilities. Hooks are attached to the wall by a screw or suction cup and can be used in tight spaces.
Once you have determined which type of mount is best suited for your space, you need to measure it. Measure from the center of the bracket or hook to where you want the TV mounted on the wall (usually about 8 inches away). This measurement is called “viewing angle” because it specifies how many degrees both horizontal (left-to-right) and vertical (up-and-down) angles can be viewed from front to back and side to side in your room. Most mounts come with instructions on how to measure viewing angle.
Additionally, when measuring your space, take into account any obstacles like furniture or walls that may block views from certain directions. Try not to mount televisions too high up on walls, as this will obstruct some views.
Once you have measured your viewing angle and space, it’s time to evaluate the strength and weight of your TV before selecting a mountfit for it. Mounts range in price from under $30to over $200 so make sure that you select one that fits both your budget and needs..
Evaluating the Strength and Weight of Your TV
When considering what type of TV mount to purchase, it is important to consider both the strength and weight of your TV. Some mounts are made from lighter materials that can be mounted onto a thinner wall, but they may not be strong enough to support a heavier television. Additionally, some mounts may have weights added so that they stay in place during wind or earthquake activity. It is important to choose a mount that can handle the weight and strength of your TV.
Assessing the Viewing Angle of Your Space
When it comes to selecting the right TV mount for your space, you’ll need to take a few things into account. First and foremost, you’ll need to measure your space to determine which type of mount will fit best. You’ll also want to make sure that the mount is strong enough to hold your television and stable enough so that it won’t move or wobble when in use. Additionally, you’ll want to consider the viewing angle of your space before choosing a mount as some TVs have a wider angle than others. Finally, be sure to purchase all necessary TV mounting accessories (like screws and bolts) so that installation can go smoothly.
Choosing the Right TV Mount Accessories
Checking Compatible Wall Types
When choosing a TV mount, it is important to consider the viewing angle of your space. TV mounts with a wider viewing angle can accommodate more angles, while those with a narrower viewing angle may be better for smaller spaces. Additionally, compatible wall types are important to consider when mounting a TV. For example, some mounts are not compatible with drywall, while others are only compatible with certain types of drywall.
Identifying Necessary Accessories
When mounting a TV to a wall or ceiling, be sure to choose the right mount for the space. There are many types of mounts and each has its own benefits and drawbacks. Here’s a guide on how to choose the perfect mount for your space:
- Checking compatible wall types: When selecting a TV mount, make sure that it is compatible with the surface you’re mounting it to. Most mounts come with specifications for different types of walls, so be sure to read through them carefully before making your purchase. Some mounts also offer compatibility with built-in cable management systems, which can help keep your wires organized and hidden.
- Identifying necessary accessories: In order to use most mounts effectively, you will need to purchase a few accessories. These include a TV mount bracket, an HDMI cable, and a VESA adapter. Make sure to read through the product specifications to see which accessories are included before making your purchase.
- Checking the weight and size of your TV: When mounting a TV, be sure to take into account the weight and size of the TV. Most mounts are designed to hold TVs up to 50 pounds, but some may be able to handle heavier TVs. Additionally, be sure to check the dimensions of the TV to make sure that the mount will fit.
- Considering price and quality: When selecting a TV mount, be sure to consider price and quality. Some lower-quality mounts can cost less, but they may not be as sturdy or capable. Conversely, some expensive mounts may not be as compatible with your TV or wall type. Before making a purchase, be sure to read through the product specifications and compare prices to find the best option for you.
Deciding on Size and Style of Mount
Whether you’re mounting a TV on the wall or on a stand, there are some key accessories to consider. Before selecting any mount, find out if your TV has mounting holes in the back. If it doesn’t, you’ll need to purchase one of these mounts. Once you know how big your TV is and what type of mount will work best for your space, compare prices and make your selection.
There are many types of mounts available on the market – either as standalone products or as add-ons to existing brackets or stands. Choose the right size and style for your TV based on its weight and width. For TVs that have curved edges, choose an adjustable Mount instead of a fixed mount to ensure proper alignment against the wall.
Once you have your TV mounted, make sure to purchase the appropriate wall mounting screws and anchors.
Understanding Maximum Weight Capacity
If you’re looking to mount your TV to the wall, you’ll need to consider a few things first. First, you’ll need to decide on the size of TV you have. Most mounts can hold TVs up to 70 inches wide, but there are a few that can handle even larger screens. Next, you’ll need to decide on the style of mount. There are three main types of mounts: wall mounts, ceiling mounts, and stand mounts. Wall mounts are the simplest and most common type of mount. They attach to the wall with screws and require no additional hardware. Ceiling mounts attach to the ceiling with screws or hooks and require drilling into the ceiling. Stand mounts are similar to wall mounts, but they have a base that sits on the floor. They’re generally easier to use than ceiling mounts, but they lack the flexibility of wall mounts. Finally, you’ll need to choose accessory items for your mount. Most TV mounts come with a mounting bracket and screws, but you may also need a power adapter, cable tie points, or an HDMI extender. Understanding maximum weight capacity is important because some TVs are heavier than others. For example, if you have a 70-inch TV that weighs 50 pounds, your mount can only hold up to 25 pounds extra weight.

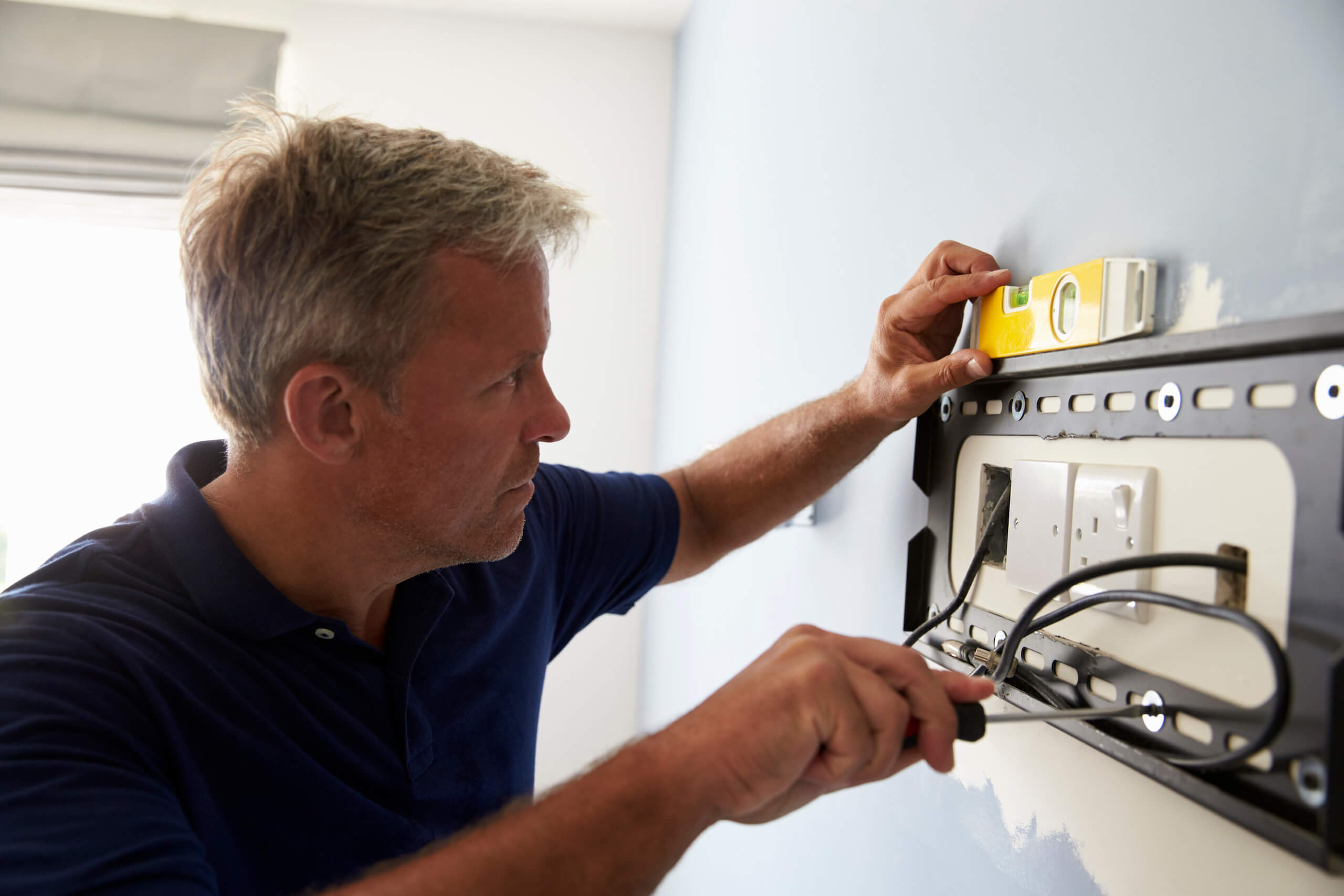

Installing Your TV Mount Safely and Securely
Installing Your TV Mount Safely and Securely
When installing your new TV mount, take care to follow the safety guidelines outlined in the installation manual. Make sure to use the correct screws and anchors, and be sure to tighten them securely. If you experience any problems during installation, be sure to contact the manufacturer or a qualified professional installer.
After considering these factors and researching the different types of TV mounts available, you should feel confident in choosing the right mount for your needs. Installing your mount safely and securely will ensure you get the most out of your viewing experience without compromising on safety or aesthetics. With a sturdy, secure mount, you can enjoy your favorite shows or movies with ease!
Frequently Asked Questions
What is a VESA TV mount?
VESA is the standard that sets the spacing of the four threaded holes on the back of a television, measured centre to centre in millimetres. A 400×400 pattern means the holes are 400 mm apart horizontally and vertically.
Any mount described as VESA compatible will list the patterns it supports. If your TV's pattern is in that list, the bracket will bolt on.
What size wall mount do I need?
Three numbers decide it: your TV's VESA pattern, its weight without the stand, and the screen-size range the mount is rated for. All three are in the manual, and all three have to pass.
Screen size alone isn't enough — two 65″ sets can differ by several kilograms depending on panel type.
Will my old mount fit my new TV?
Only if the VESA patterns match and the new set is within the mount's weight and size rating. Newer panels are often lighter but physically wider, which can put the fixing holes outside the old bracket's arms.
Check the pattern before you assume — it's a five-minute measurement that saves an unnecessary purchase.
Can I reuse my existing TV mount?
Frequently yes, if the bracket is undamaged and the ratings still cover the new television. Replace it if the arms are bent, threads are stripped, or the new set is heavier than the mount is rated for.
Reusing the wall plate also means reusing the existing holes, which saves patching.
Can a TV be mounted on metal studs?
Yes, but not with the lag bolts supplied for wood framing. Steel studs are hollow and thin, so they need purpose-made toggle fixings rated for the load.
Metal studs are common in condos and commercial buildings across the GTA, and this is the fixing most often got wrong on a DIY install.
How do I find my TV's VESA size?
Measure the horizontal and vertical distance in millimetres between the centres of the four mounting holes on the back of the panel. That pair of numbers is the pattern. It's also printed in the manual and usually on the original carton.
Fixed, tilting or full motion — which should I pick?
Fixed if the screen sits at seated eye level and the seating faces it squarely. Tilting if the screen has to go high, such as above a fireplace, so you can angle it down. Full motion if seating is spread across the room or off to one side, or if you need to reach the ports regularly.
Can I mount a TV on a concrete or brick wall?
Yes, and it's a very strong fixing. You'll need a hammer drill, the correct masonry bit and sleeve or wedge anchors rated for the load. Drill into the brick itself rather than the mortar joint where you can — mortar is the weaker material.
Does the mount affect how far the TV sits from the wall?
Considerably. A slim fixed mount holds the panel about an inch off the wall. A full-motion arm folded flat typically sits two to three inches out, and further still if the bracket has to clear a recessed area or a thick cable run.
